C50 Series Touch Control Diaphragm Vacuum Pump

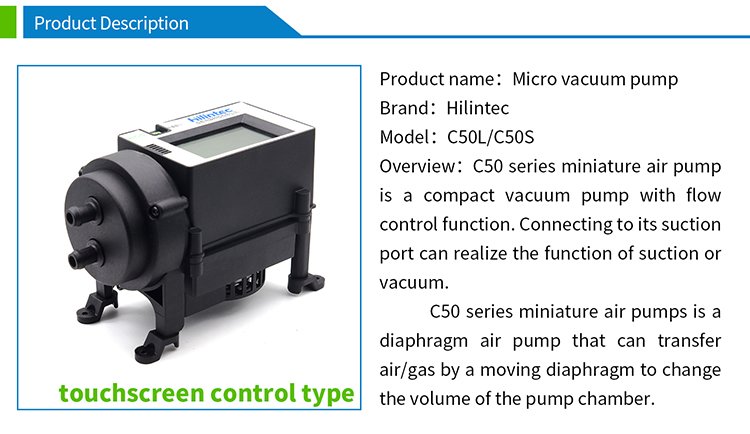

 The C50 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. Connecting to its suction port can realize the function of pumping or vacuuming.
 The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
 It is especially suitable for scenarios where installation space is not large, large flow or high vacuum is required, and the gas exhaust is smooth. The pump is equipped with LCD display, which can be touched to control the start, stop and speed. It has high reliability and a peak flow rate of 22L/min.

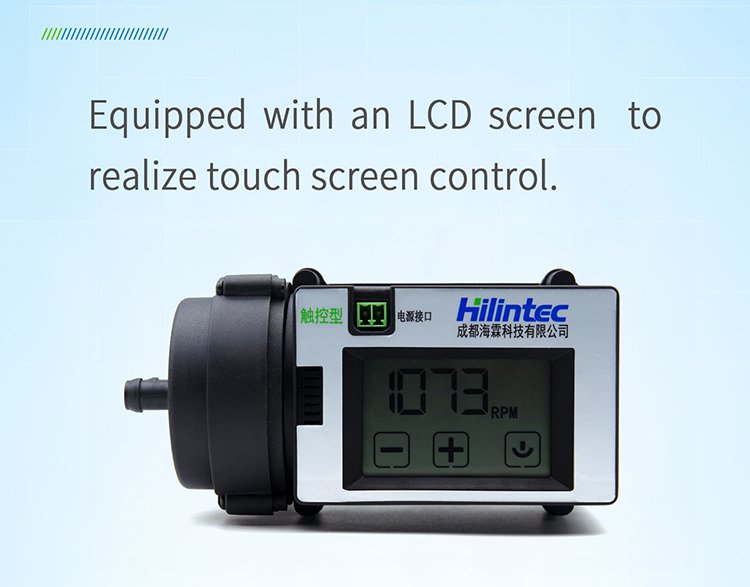

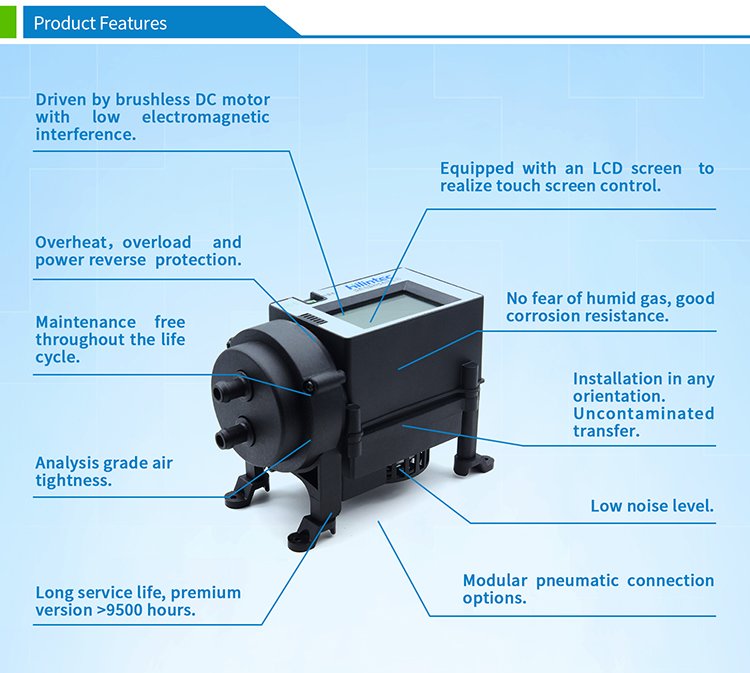

■Equipped with touch LCD screen and replaceable pneumatic connector

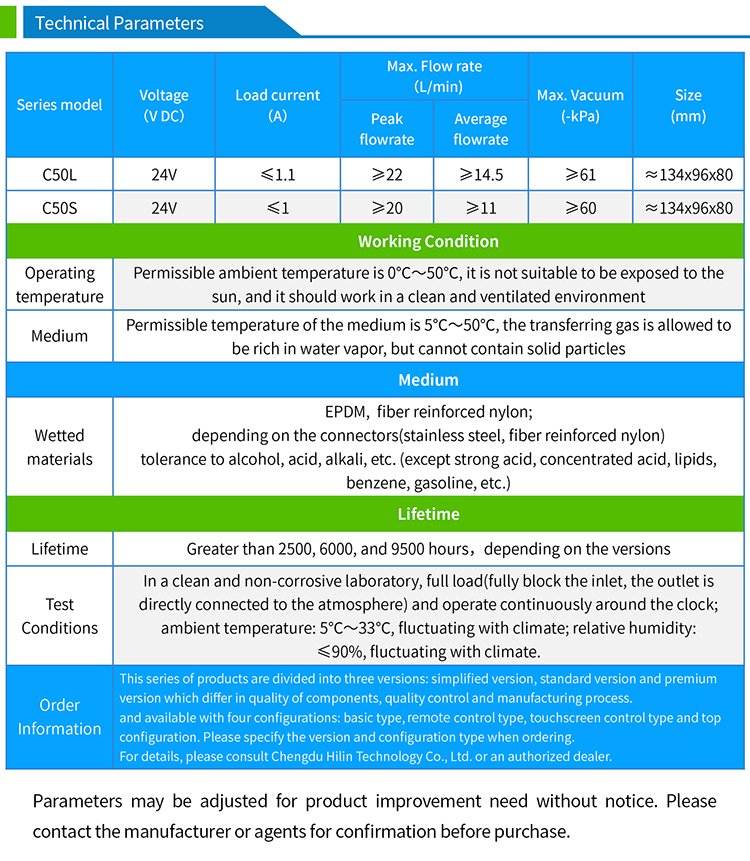

■No-load average flow: 11/min~14.5L/min
■No-load peak flow rate: 20L/min~22L/min
■Overall life: premium version>9500h
